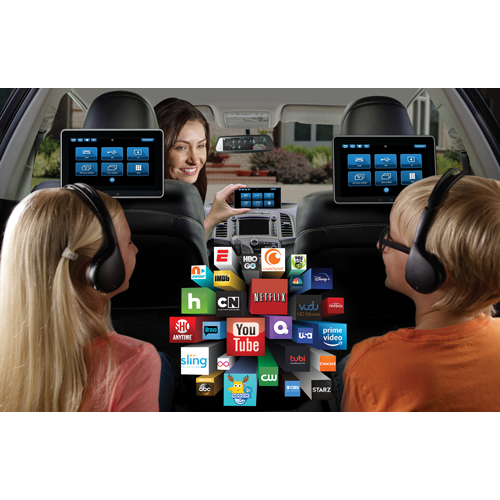

Dual 10.1" Seat-Back Entertainment System Dual Android, DVD, HDMI, SD, USB, and Touch Screen Interface

Model: AMROSSBA2

KEY FEATURES

  • 10.1" Digital LCD Display (1024 x 600)

  • Capacitive Multi-Touch Panel
  • Android 8.0+ Operating System
  • Quad Core Process - 8GB RAM
  • 16GB Built-in Memory to Download Off-Line Content from Apps such as Netflix and Prime Video
  • Intuitive User Interface
  • WIFI: 802.11 1/b/n/g Dual Band (Hot Spot Required)
  • VOXXLINK Full System Remote Control and System Monitoring via Android & Apple Smartphones (Free App)
  • Download Your Favorite Apps, Play Your DVD Collection and Control the Seat-Back System From Anywhere in the Vehicle
  • Built-In Access to your Favorite Apps
  • Google® Play Store
  • USB Input for Digital Media Playback and Smart Device Charging
  • Built-in DVD Player
  • HDMI Input to Connect an External Game System and Connect Smart Devices such as Smartphones and Smart TV Sticks Amazon®, Roku® & Chromecast®)
SB10UHD

VOXX Universal Seatback Vehicle Entertainment System

VOXX Link

Universal Seatback System Install Video

PRODUCT OVERVIEW

Features (continued)
  • Hi-Def Dual Screen Mirroring
  • Micro SD Input
  • Built-in Voltage Stabilizer for Vehicles with Fuel Saver (Start/Stop) Feature
  • 100 Channel FM Modulator (Transmits Audio Through the Vehicle Sound System)
  • (2) Dual Channel Wireless Headphones Included
  • Universal Mounting Bracket (Does not Interfere with Factory Headrest Movement)
  • Specialty Mounting Brackets Available as Optional
  • Accessories (see application guide)
  • Note: Wireless content streaming may be limited based upon device and app restrictions
  • Built-In Voltage Stabilizer
Specifications
Frequency Response    3.5mm Audio Output: 40Hz ~ 20kHz +/- 3dB
Display    10.1" Capacitive Touch Screen, Resolution: 1024 (RGB) x 600
LCD backlight Types    LED Backlight Life: 20,000 Hours
Supported Disc Types    DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer, DVD-RW/+RW, CD, CD-R, CD-RW
General    Operation Voltage: 10.5VDC ~ 16VDC, Operation Power: 18W max @ 12VDC, Operation Temperature: 32 ~ 131°F (0 ~ 55°C)
HDMI Support    Version 1.4b, HDCP 1.4 Compliant
Wireless Headphones    2-Channel Stereo, (Typical Infrared Range: 2.5m)
Wi-Fi Networks    802.11a/b/g/n/ac Dual Band
FM Modulation    88.1MHz ~ 109.7MHz
USB Support    Version 1.1, Version 2.0 High Speed, 5 watt (1 Amp) Max Charging Output, 64GB Max Capacity
Micro SD Card Support    SD, SDHC, SDXC, 64GB Max Capacity
